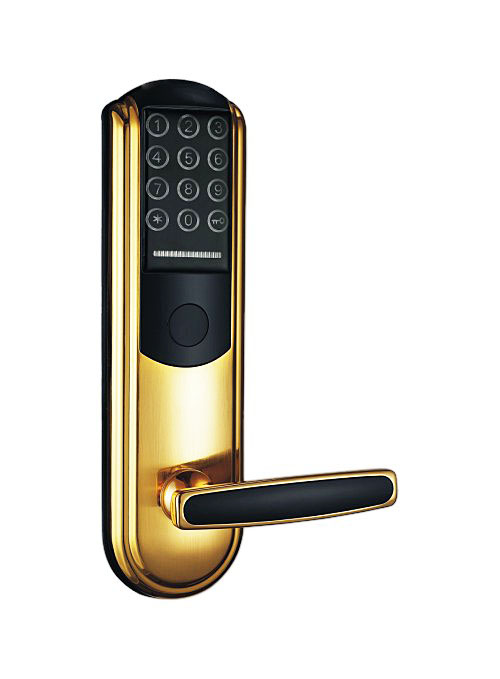

GLJ-908 Password lock

Materials: Zinc alloy

Cylinder: Plastic lock core

Size: 292*78

Surface treatment: Bright gold, bronze

Features: Hierarchical management and control

Range: Villas, apartments, private clubs, luxury homes, home

Overview

Introduction to Password lock

· 24k plated gold, will never fade.

· The door lock system is powerful and flexible, you can implement one card, a card to open the door.

· The card type: Mifare

· The touch-key password

· Microwave detecting door card near

· Lock mode you can set: Mifare card and password can be unlocked individually, or you can set up card and the password used to open the door

· The door card locked set, no system software. Door locks can be set up to 2 management cards, 200 door card. Card passwords can modify, you can set up an admin password, open 50 passwords.

· Support password characters entered, maximum you can enter your 12-digit password.

· Lock can be set through open.

· Lock on the door is not fully closed is alarming.

· At low voltage alarm, battery-powered, locks can be connected with a external power supply.

Features Password lock

Stand-alone: individually using the Mifare card or password can open the door.

Combined type: Mifare card and the password used to open the door.

1.1. the switch from stand-alone to combined operations are as follows:

Enter 8-bit password press the key and then pressing the button buzzer Bell 5, 6th, and red and blue lights flashing, then press the key to confirm the buzzer "di" long rang switch successfully. If you exit then press the * key;

1.2. modular switch to stand-alone operation is as follows:

Brush management card management password enter your 8-digit press the key after key, followed by the 6th key buzzer Bell 5, red and blue lights flashing, then press the key to confirm the buzzer "di" long rang switch successfully. If you exit then press the * key;

2. in integrated mode, if you read the card (or enter a password, and then press the key button) is "di" led with a blue light flashes, and then enter the open password, press keys keys (or reader) blue light to open the door.

Parameters

Parameters
Power supply	DC4.8V-6.5V,4 1.5V LR6 alkaline batteries
Quiescent current	<20
Dynamic current	<180
Storage temperature range	-20~+85℃
Storage humidity	10~98% RH
Working temperature	0~+70℃
Operating humidity	15~95% RH
